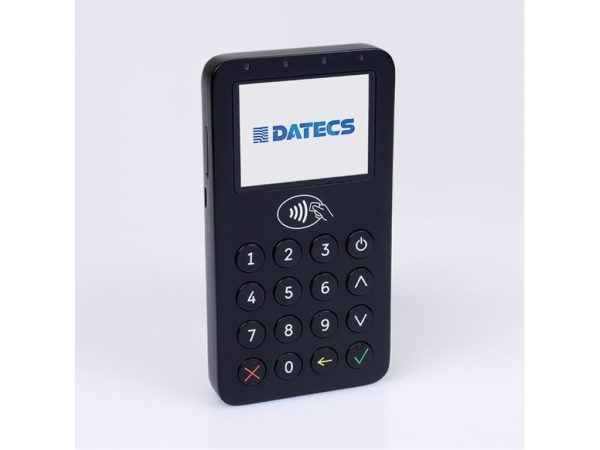

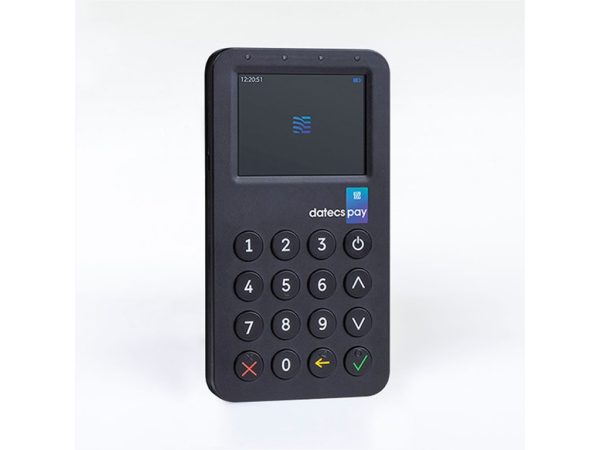

BluePad-55 V2 PIN PAD MINI, BT,NFC,SAM, WIFI,4G
BluePad-55 este un nou terminal pentru plati bancare pinpad, dotat cu un ecran tactil mai mare decat versiunile precedente din serie. Printre caracteristice noului echipament BluePad-55 se numara ecranul color si bateria de capacitate mare, echipamentul fiind de asemenea dotat cu Bluetooth pentru toate tipurile de plata cu card – banda magnetica, EMV Chip&PIN si contactless.
BluePad-55 poate fi conectat cu usurinta la diverse accesorii precum imprimante mobile, scannere de coduri de bare si statii de incarcare.
Sisteme de operare compatibile: iOS, Android, Windows Mobile.
- Descriere
Descriere
- CPU: Secure ARM Cortex M3
- Butoane: On/Off; 10 butoane numerice si 5 butoane cu functii
- Display: 320 x 240 px touch screen display
- Magnetic Card Reader: Triple track bi-directional
- Smart Card Reader: Landing type
- Contactless Reader (optional): NFC-A, ISO 14443 Type A; NFC-B, ISO 14443 Type B; NFC-F, Felica; NFC-V, ISO 15693
- Contactless Payments (optional): VISA payWave, MasterCard PayPass; American Express; DPAS (Discover); China UnionPay; J/Speedy (JCB); Common.SECC
- Connectors: RS-232 contact pins; USB Type-C port; SAM card slot (optional); SIM card slot (optional)
- Wired Communication: USB (device)
- Sisteme de operare compatibile: iOS; Android; Windows
- Bluetooth (optional): BT version 4.2 Low Energy
- Wireless (optional): Wi-Fi IEEE 802.11 b/g/n
- Cellular Module (optional): 2G/3G/4G communication
- LED Indication: Contactless payment status
- Audio Features: Electromagnetic buzzer
- Power Supply: DC 5 V through USB; DC 5 V through contact pins
- Baterie: BaterieLi-Ion reincarcabila 3.7 V, 1180 mAh
- Fiabilitate: 500,000 cicluri chip card; 1,000,000 magnetic card swipes; 1,000,000 button clicks
- Certificate: CE; FCC; PCI PTS 4.x; EMV Level 1; EMV Level 2; EMV Level 1 Contactless; TQM
- Dimensiuni: W x D x H 71 x 133 x 19 mm
- Greutate: 180 g
- Temperatura operare: -10 °C to 40 °C / 5 to 70% RH
- Temperatura depozitare: -15 °C to 50 °C / 5 to 70% RH
- Test cadere: 1.2 m, fete si margini
